Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66

  • Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66
  • Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66
Tempat asal Cina
Nama merek Zetron
Sertifikasi ISO,CE,FCC, ROHS, CNEX
Nomor model PTM600-EG
Kuantitas min Order 1
Harga $100-$5000
Kemasan rincian Karton Kertas
Waktu pengiriman 3-7 hari
Syarat-syarat pembayaran T/T, Western Union, Moneygram
Menyediakan kemampuan 1000 set/bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Produk Zetron PTM600-EG Laser Metana dan Detektor Etana Tingkat perlindungan IP66
Gas terdeteksi Metana (ch₄) dan etana c₂h₆ Waktu respons 0,5 dtk
Metode pengukuran Jenis Pompa-Pompa Laju aliran pengambilan sampel maksimum 1,5 liter/menit
Menyoroti

Zetron PTM600-EG methane detector

,

laser methane detector with IP66

,

fast response methane ethane detector
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk

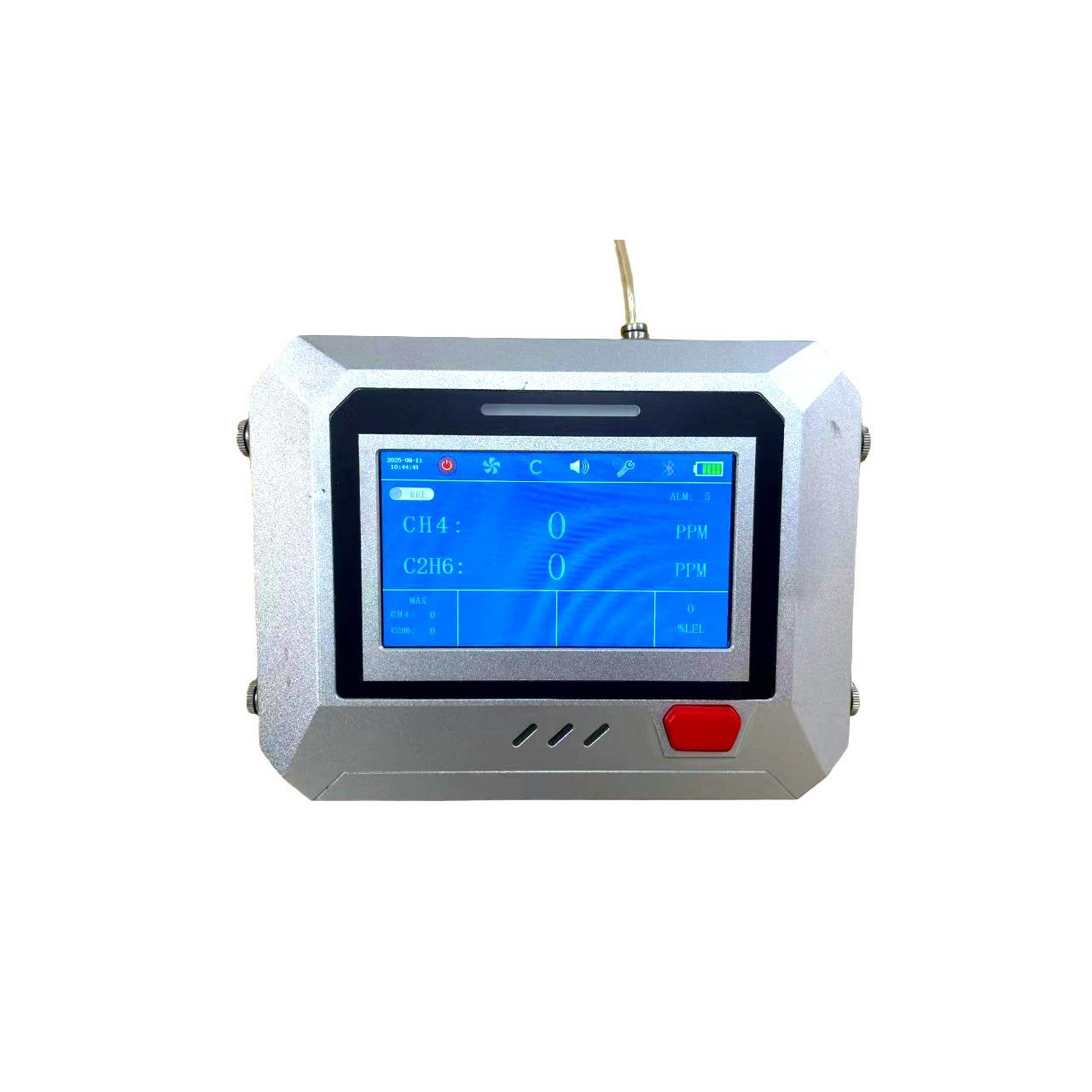

Zetron PTM600-EG Portable Laser Methane Ethane Gas Detector
Natural Gas Pipeline Leak Inspection
The Zetron PTM600-EG portable laser methane ethane detector utilizes advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology for natural gas pipeline leak detection. This device simultaneously detects methane and ethane concentrations, enabling differentiation between natural gas and biogas. With superior detection sensitivity and extended service life, it represents a modern high-tech solution for gas detection.
Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 0
Key Features
  • Multi-range coverage: Supports ppm, %LEL, and %VOL full-range display to meet diverse application needs.

  • Intelligent and user-friendly operation: One-button startup combined with an intuitive touchscreen interface for fast and easy operation.

  • Long service life: Device lifespan of up to 10 years.
  • High specificity: Precisely identifies chemical reactions of methane and ethane only.
Technical Specifications
Attribute Value
Product Name Zetron PTM600-EG Laser Methane and Ethane Detector
Detected Gas Methane (CH₄) and Ethane C₂H₆
Response Time 0.5 s
Measurement method Pump-suction type
Maximum sampling flow rate 1.5 L/min
Measuring range Methane: 0-100,000 ppm; Ethane: 0-30,000 ppm
Sensitivity 1ppm
Power supply Lithium-ion battery 7.2V 6800mAh or 12V DC
Operating Temperature -25℃ ~ 50℃
Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 1 Zetron PTM600-EG Laser Methane Ethane Detector 0.5s Response IP66 2
Applications
The PTM600-EG Portable Laser Methane Ethane Detector is designed for accurate, rapid detection in various industrial and municipal applications. Its advanced TDLAS technology provides high specificity and sensitivity for identifying natural gas or biogas leaks. With pump-suction design, fast 0.5-second response, and full-scale measurement range (ppm, %LEL, %VOL), it's ideal for pipeline patrols, station inspections, municipal underground pipelines, courtyard pipelines, long-distance transmission lines, and other specialized inspection scenarios. The intrinsically safe design with IP66 protection grade offers professionals a durable, reliable gas detection solution.
