Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4

  • Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4
  • Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4
Tempat asal Cina
Nama merek Zetron
Sertifikasi ISO,CE,FCC, ROHS, CNEX
Nomor model PTM600-EG
Kuantitas min Order 1
Harga $100-$5000
Kemasan rincian Karton Kertas
Waktu pengiriman 3-7 hari
Syarat-syarat pembayaran T/T, Western Union, Moneygram
Menyediakan kemampuan 1000 set/bulan

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Produk Zetron PTM600-EG Laser Metana dan Detektor Etana Gas terdeteksi Metana (ch₄) dan etana c₂h₆
Rentang pengukuran CH4: 0–100.000 ppm; C2H6: 0–30.000 ppm Metode pengukuran Jenis Pompa-Pompa
Tingkat perlindungan IP66 Laju aliran pengambilan sampel maksimum 1,5 liter/menit
Sertifikasi anti-ledakan Exib iib t4 gb
Menyoroti

Zetron PTM600-EG methane detector

,

laser methane detector with IP66

,

fast response methane ethane detector
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
Zetron PTM600-EG TDLAS Portable Gas Analyzer for Natural Gas and Biogas Identification
Product Overview

The Zetron PTM600-EG Portable Laser Methane & Ethane Detector features cutting-edge Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, specifically designed for natural gas pipeline leak detection. Its unique capability to simultaneously monitor methane and ethane concentrations allows for precise differentiation between natural gas and biogas.

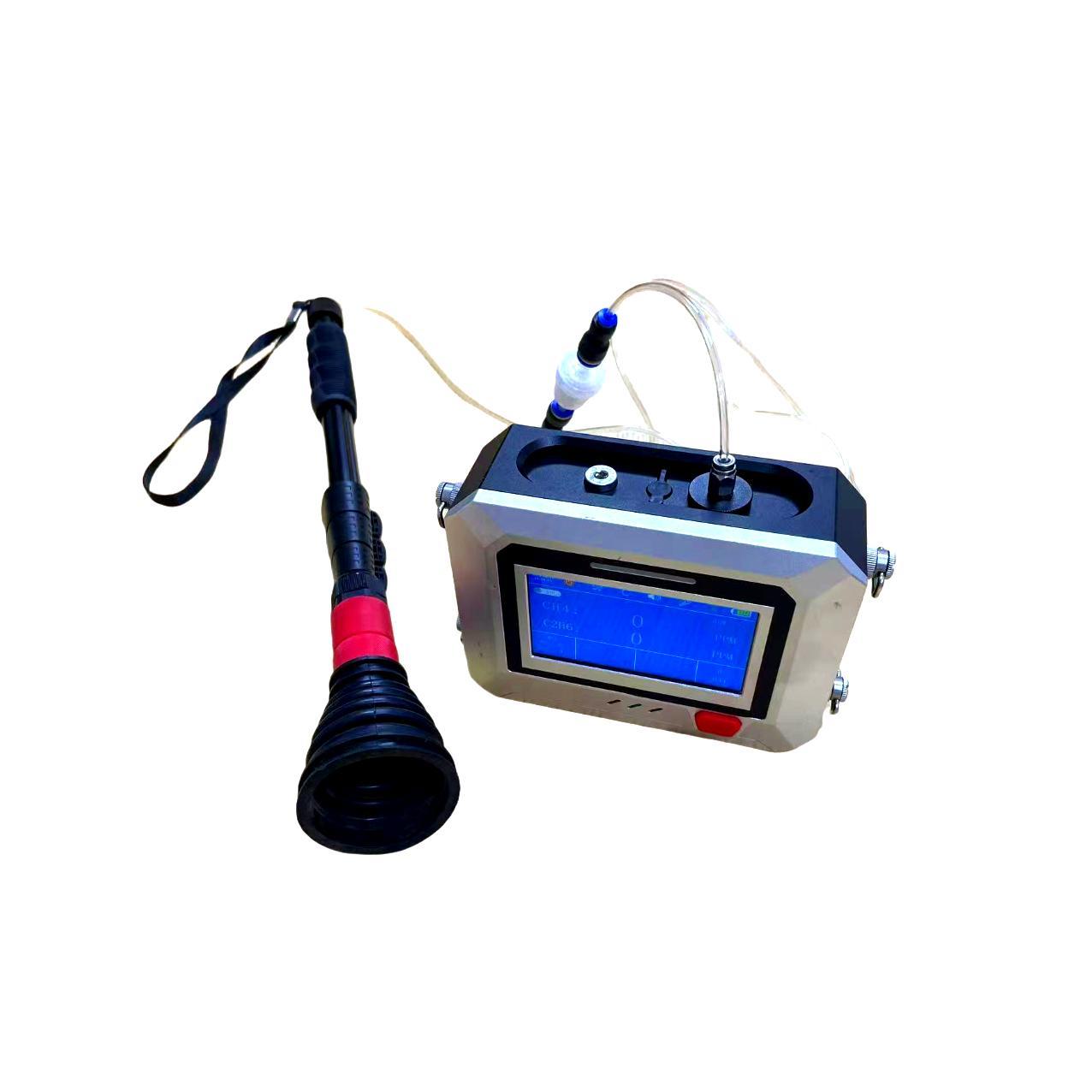

Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 0
Key Features
  • Intuitive and User-Friendly: One-button start with a humanized touchscreen interface for simple and fast operation.
  • Multiple Range Modes: Provides full-range display in ppm, %LEL, and %VOL to cover diverse applications.
  • Long Service Life: Designed for up to 10 years of use, offering high return on investment.
  • Intrinsic Safety Design: Complies with stringent safety standards, suitable for potentially explosive environments.
Technical Specifications
Attribute Value
Model PTM600-EG
Product Name Zetron PTM600-EG Laser Methane and Ethane Detector
Detected Gas CH₄ and C₂H₆
Measuring range CH4: 0-100,000 ppm; C2H6: 0-30,000 ppm
Measurement method Pump-suction type
Operating time Battery life ≥10 hours, standby ≥24 hours
Operating humidity <90% RH (non-condensing)
Protection rating IP66
Dimensions 170 mm (L) × 70 mm (W) × 130 mm (H)
Applications

The PTM600-EG is an advanced portable solution for precise natural gas leak detection, combining high sensitivity with fast response. Its dual-gas detection capability enables simultaneous monitoring of methane and ethane, making it ideal for distinguishing natural gas from biogas.

Designed for diverse operational environments, it is perfectly suited for routine inspections of municipal pipelines, residential gas safety checks, and energy site monitoring. With robust IP66 protection and intrinsic safety features, the PTM600-EG performs reliably in challenging locations including long-distance transmission pipelines and special industrial environments.

Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 1 Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4 2
