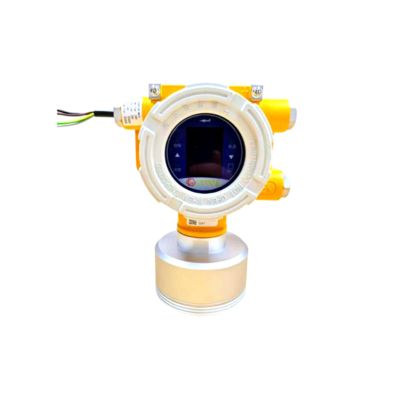

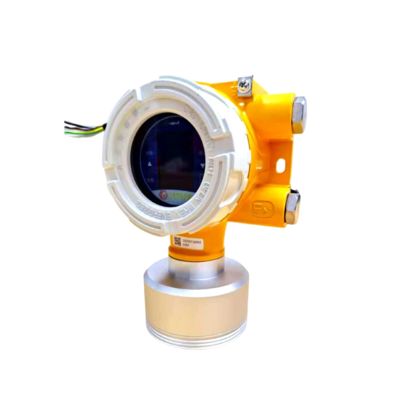

Zetron MIC100 Fixed Multi Gas Detector - Online Gas Monitoring System with OLED Display and RS485 / 4-20mA Output for Toxic, Combustible and VOC Gases
| Tempat asal | CINA |
|---|---|
| Nama merek | Zetron |
| Sertifikasi | CE |
| Nomor model | MS104K |
| Kuantitas min Order | 1 set |
| Harga | USD 100-545/set- 879/set |
| Kemasan rincian | 29*26*13.5cm, 2.5kg |
| Waktu pengiriman | 1-10 hari kerja |
| Syarat-syarat pembayaran | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Menyediakan kemampuan | 1000 SET / minggu |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Jenis | Detektor Tetap | Satuan gas | PPM, mg/m3, Vol%, LEL%, PPM, ppb, mg/l |
|---|---|---|---|
| Dukungan khusus | OEM, ODM, OBM, rekayasa ulang perangkat lunak | Catu daya | 24V DC (daya AC opsional) |
| Suhu kerja | -40 ° C hingga +70 ° C. | Jaminan | 1 tahun |
Deskripsi Produk
MIC100 Fixed Type 4-in-1 Gas Detector
The MIC100 is a highly integrated online multi-gas detection solution designed to provide superior safety monitoring in harsh industrial environments. It is capable of simultaneously monitoring up to four different gases in real time with high precision, covering a wide range of applications from combustible and explosive gases to various toxic and hazardous gases as well as volatile organic compounds (VOCs).
The MIC100 combines multiple advanced sensing technologies, including catalytic combustion, electrochemical, non-dispersive infrared (NDIR), and photoionization (PID) detection principles. It is equipped with intelligent modular sensors, a high-definition OLED display, and supports multi-point calibration and temperature compensation functions, ensuring stable and accurate measurements even under complex working conditions. With its durable construction and convenient remote operation capability, the MIC100 is an ideal choice for ensuring personnel safety, preventing property loss, and meeting industrial compliance requirements.
Key Features
-
Multi-functional Integrated Monitoring: Supports simultaneous detection of up to four gases. The configuration can be flexibly customized based on site requirements, integrating different types of gas sensors in one device to greatly improve monitoring efficiency and reduce overall costs.
-
Intelligent Modular Sensors: Designed with modular, intelligent sensor units that simplify installation and maintenance. The plug-and-play design minimizes downtime and ensures continuous, reliable monitoring performance.
-
Exceptional Accuracy and Stability: Equipped with multi-point calibration and built-in temperature compensation algorithms to eliminate the impact of environmental temperature variations. It delivers high-precision measurement results within a wide temperature range of -40°C to +70°C.
-
Rugged and Explosion-Proof Design: Constructed with a high-strength aluminum alloy housing, the device achieves IP66 protection rating and triple waterproof design. Certified with Exd IIC T6 Gb explosion-proof rating, it performs reliably even in humid, dusty, or explosive atmospheres.
Technical Specifications
| Item | Description |
|---|---|
| Model | MIC100 |
| Detection Principle | Catalytic combustion, Electrochemical, NDIR, PID (optional) |
| Gas Types | Combustible gas, O₂, CO, H₂S, NH₃, Cl₂, SO₂, VOCs, etc. |
| Detection Channels | Up to 4 gases simultaneously |
| Measuring Range | Customizable according to gas type |
| Display | 1.3-inch OLED high-definition display |
| Accuracy | ≤ ±2% F.S. |
| Response Time (T90) | ≤ 20 seconds |
| Power Supply | 24V DC (optional AC power) |
| Working Temperature | -40°C to +70°C |
| Protection Rating | IP66, triple waterproof design |
| Explosion-Proof Grade | Exd IIC T6 Gb |
Application Industries:
The MIC100 Online Multi-Gas Detector is widely used in industries such as petrochemical, natural gas, metallurgy, power generation, pharmaceuticals, wastewater treatment, warehousing, laboratories, and environmental monitoring. It provides real-time online detection of toxic, combustible, and VOC gases, helping to prevent leakage accidents and ensure personnel and equipment safety. With its explosion-proof, dustproof, and waterproof design, the MIC100 operates reliably under harsh and complex conditions, making it an essential component of industrial safety monitoring systems.
